product introduction
side panel
分享到:
side panel
Description: Each side wall will be composed of a number of sheets for the intermediate (inner) parts and outer panels at each end of side wall, fully vertically corrugated into trapezium section, but welded.....

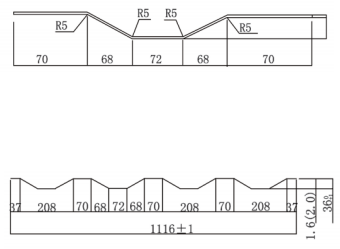

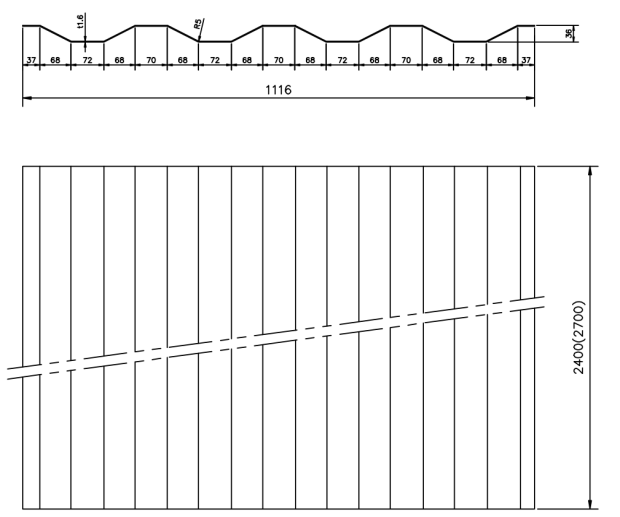

Specification: 1.6*1116*2400
NO.: JZ-02-01
Material: CORTEN / Q235
weight: 35.57 KGS
产品详情



Side Walls

Each side wall will be composed of a number of sheets for the intermediate (inner) parts and outer panels at each end of side wall, fully vertically corrugated into trapezium section, but welded together to form one panel by automatic welding.
