cross member
Description: The crossmembers are composed of a number of small pressed channel section and some large ones located beneath each board joint of the plywood. 
Specification: 4.0*45*122*45*2350                                     4.0*45*122*80*2350                                     4.0*30*122*60*2350
NO.: JZ-08
Material: CORTEN / Q235
weight: 15.64-18.23 KG
产品详情




Cross member

The crossmembers are composed of a number of small pressed channel section and some large ones located beneath each board joint of the plywood. 

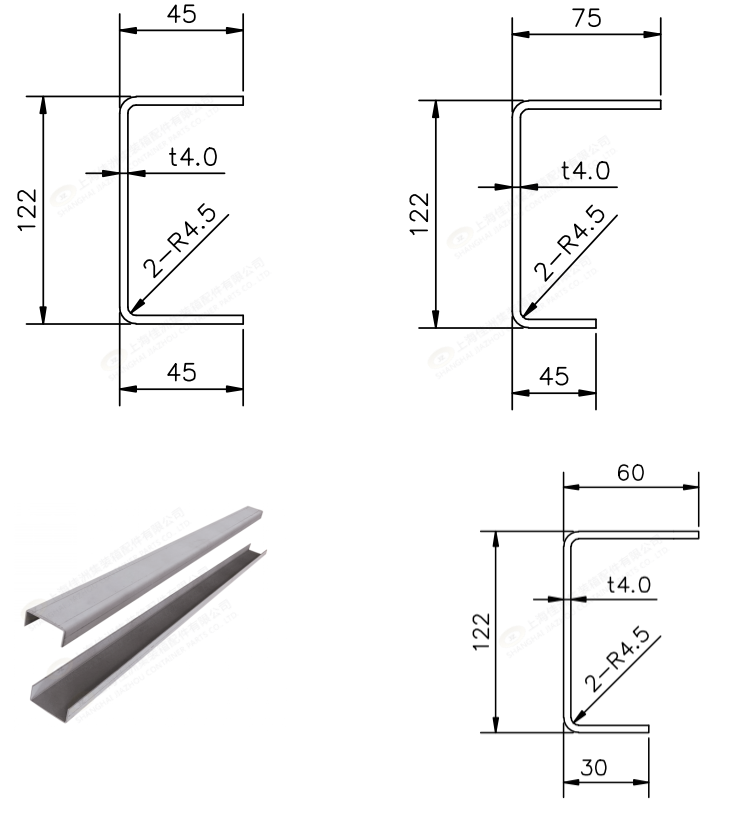

1、Shape          :      " C " section

2、Small one  :   122 x 45 x 45 x 4.0 mm ,    Qty.  :  13 

3、Large one   :      122  x   80  x  45  x   4.0  mm  ,     Qty.  :  2
